Check Weigher

CHECK WEIGHER-

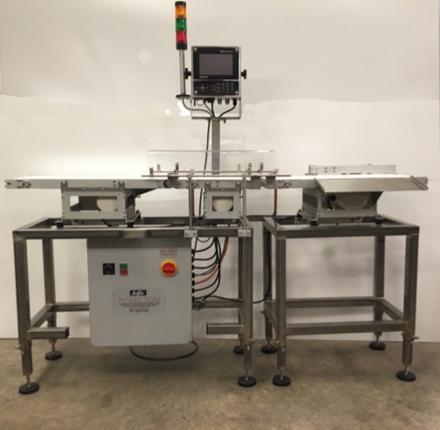

Model CWS-26-14-26

STANDARD FEATURES

SOFTWARE:

• Four levels of security

• Real time statistical information

• Product report

• Statistical report

• Parameter report

• User report

• Store up to 1,000 different products recipes


HARDWARE:

• Square tube construction (SST)

• 35” height from top of belt with +/- 5” of adjustment

• Modular belting

• Drive on left hand side of belt (looking down belt flow)

• Control panel mounted on left hand side of belt (looking down belt flow)

CONTROL PANEL:

• Power disconnect with lockout/tagout

• VFD (Variable Frequency Drive)

• Motor overloads


SPECIFICATIONS:

Construction:

• Stainless steel

• Conveyor width = 10 inches

• Infeed conveyor length = 26 inches

• Weighing conveyor length = 14 inches

• Outfeed conveyor length = 26 inches

• Overall Size = 72” (Long)  x 24” (Wide) x 35” (Height, +/- 5”)

• Machine Adjustability = Adjustable Height From 30” to 40” High


Speed:

• Up to 300 ft per minute belt speed

• Up to 200 small clam shells weighed per minute


Container Types:

• Boxes, bags, pouches, trays, tubs, cups, blister packs, display packs, clam shells


Container Weights:

• Up to 5 lbs.

• Resolution = +/- one gram


Belts:

• Habasit


Power Configuration:

• 230 VAC Single phase, 60Hz


Warranty:

• One-year limited warranty (excludes wearable parts)


OPTIONAL FEATURES & ACCESSORIES

• Divert methods

• Pneumatic pusher

• Paddle

• Secondary diverter in series or parallel

• Three Zone stack light

• Draft shields

• Drop chutes

• Custom programming

• Automatically adjust filler weight by controlling the hopper chute
